Reconnecting Sync scorer cable

Instructions below on how to re connect the Sync scorer cable.

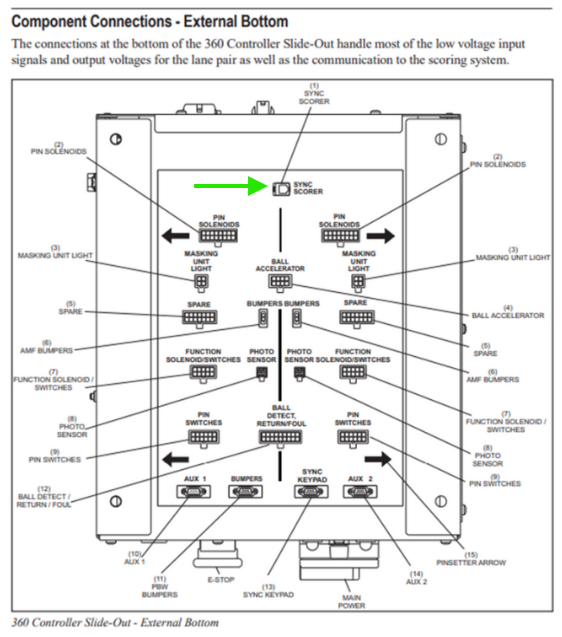

The green arrow shows the Sync scorer cable.

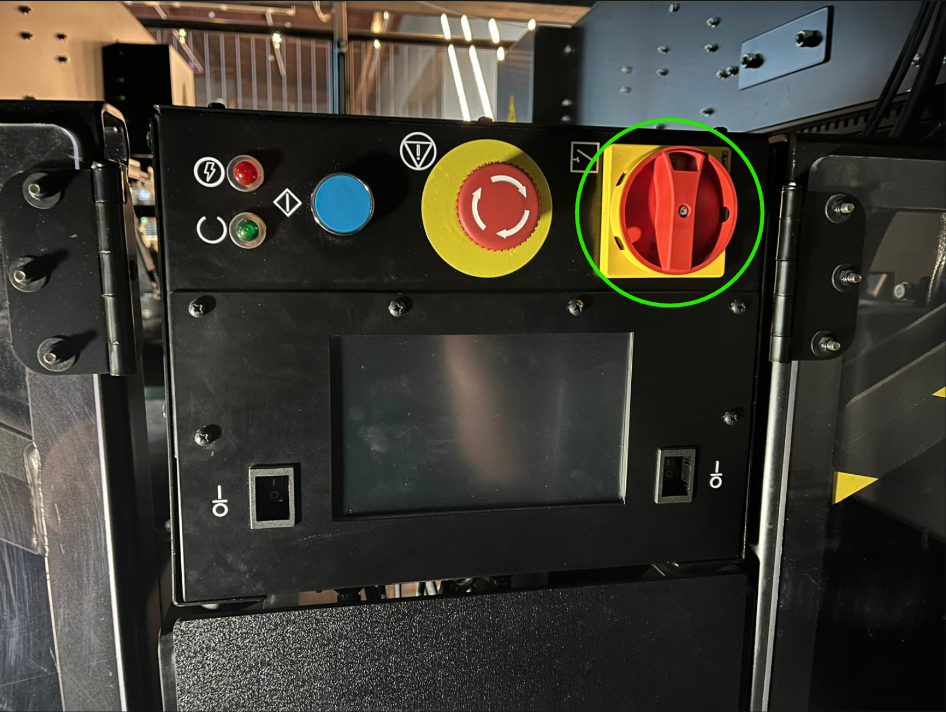

Turn off the power to the pinsetter by the 360 controller. (Pictured below)

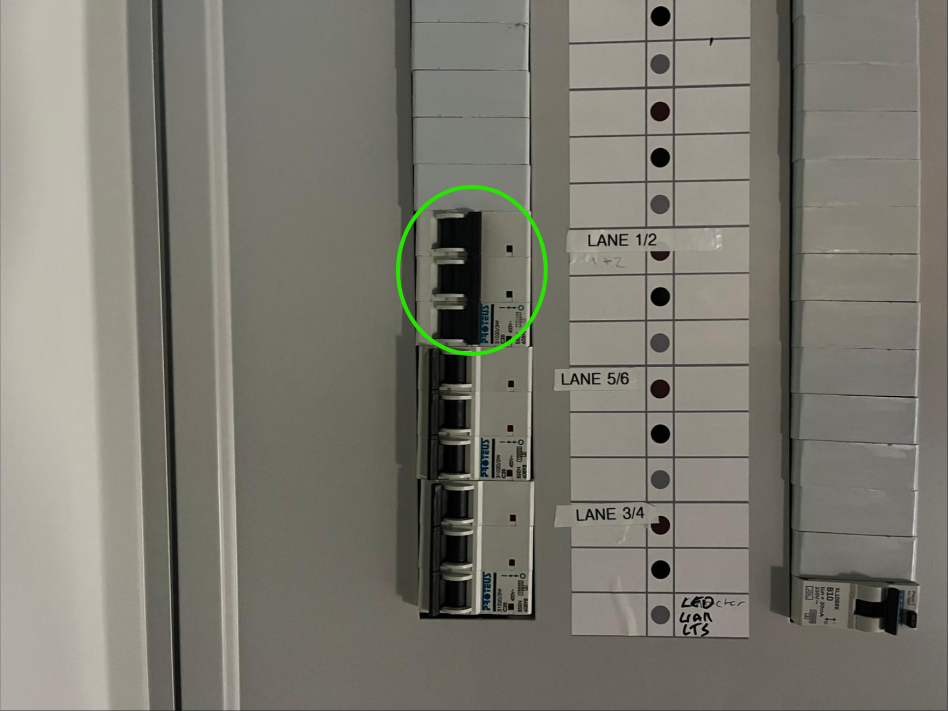

Turn power off at the distribution board, before power enters the 360. Please note this distribution board will likely be different site by site.

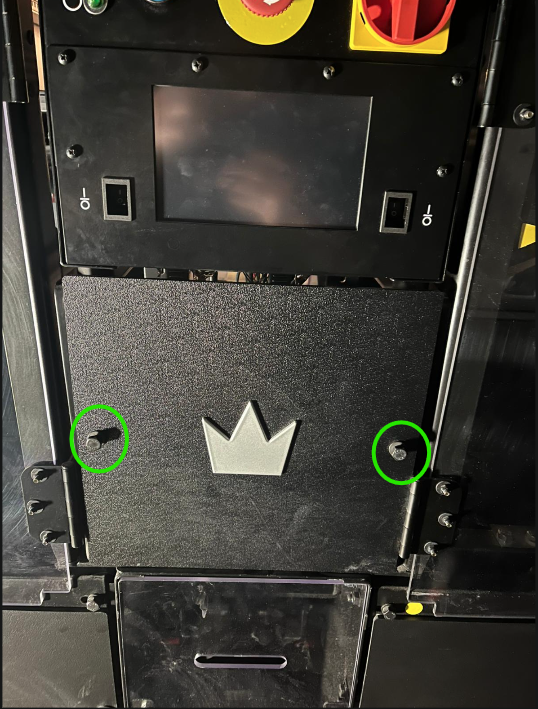

Remove the 13mm bolts and then remove the plastic cover

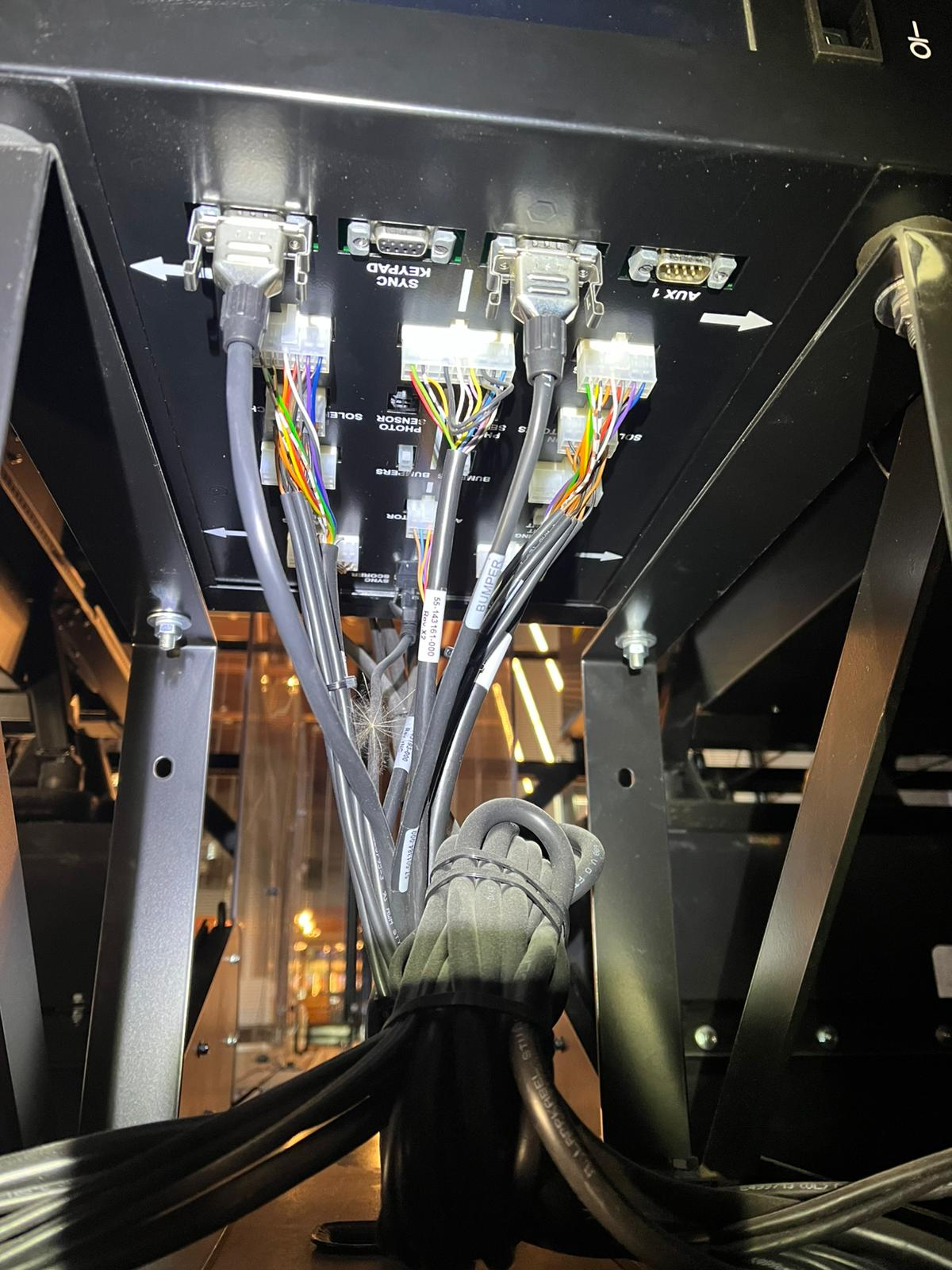

Take photos of where all the plugs go, under the 360.

Then unplug all plugs

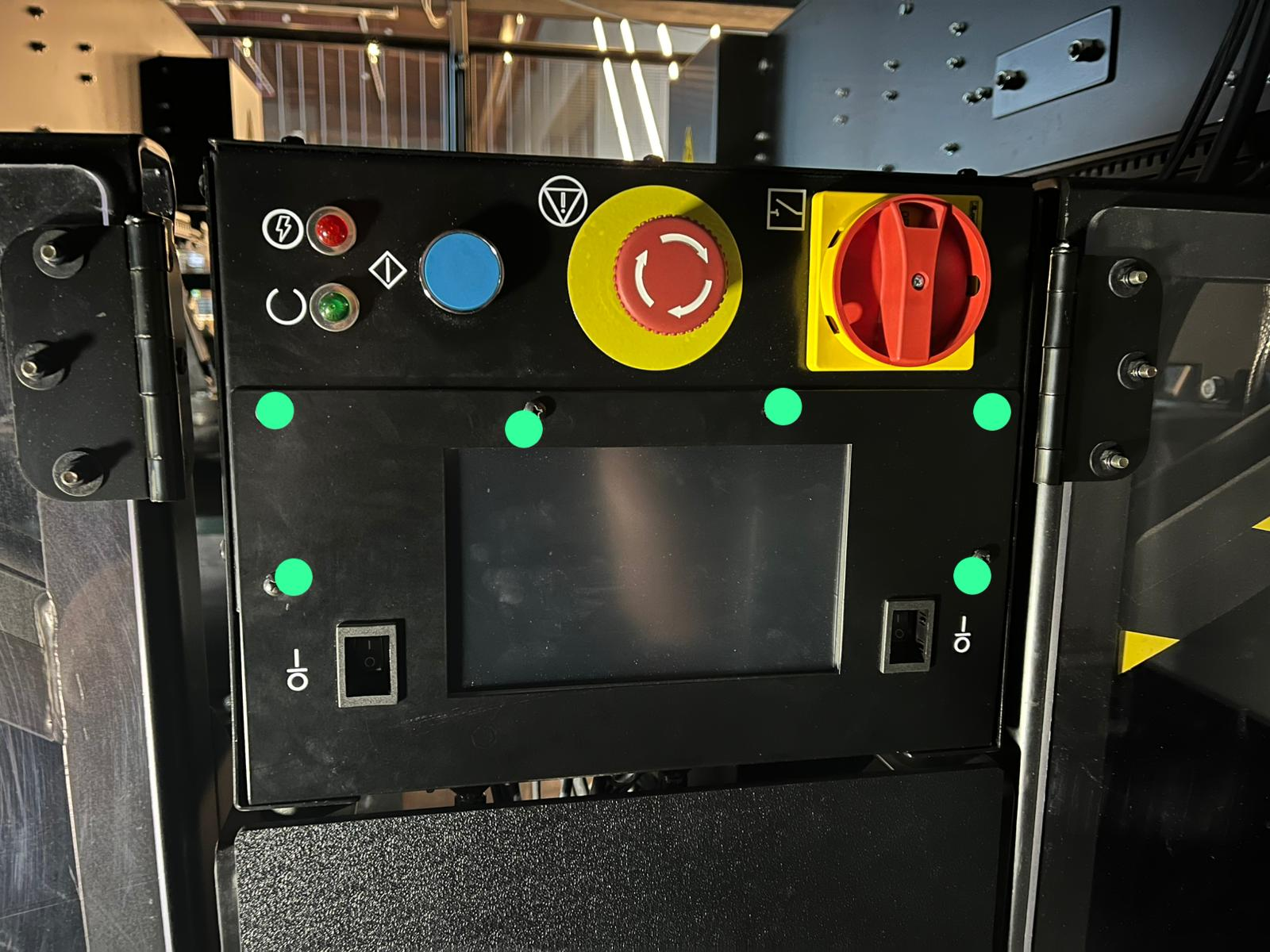

Remove the six screws highlighted here

Gently slide the “slider” out, being careful with all internal plugs and wires.

Two or three plugs may need removing inside for you to be able to extract the slider fully. Take photos or make notes of where they go.

You should then be able to secure the network socket at the rear of the slider

After the network cable is fully secured. Reverse the process to put everything back together.
