Replacing a Sync Peripheral Controller

Preparation

Tip

Take a photo of the cables connected to Peripheral Controller to make connecting cables to the replacement easier.

  1. Turn the Peripheral Controller off, then disconnect the power cable.
  2. Disconnect each cable connected to the outside of the Peripheral Controller.
  3. Remove the (2) screws that secure the slide cover, then remove the cover.
  4. Disconnect each cable connected to the Distribution Board, then carefully remove the cables through the appropriate feed-through hole.
  5. Loosen the screws that secure the Peripheral Controller to the mounting board.
  6. Lift the Peripheral Controller up and remove it from the mounting board.
  7. Remove the (2) screws that secure the slide cover on the replacement Peripheral Controller, then remove the slide cover.

Configuring the Replacement Peripheral Controller

Tip

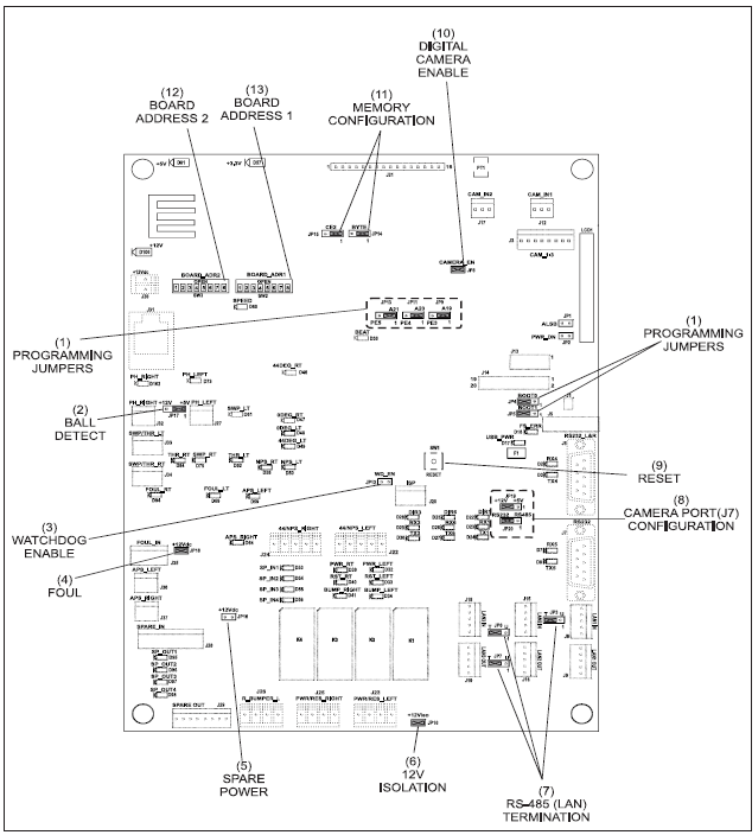

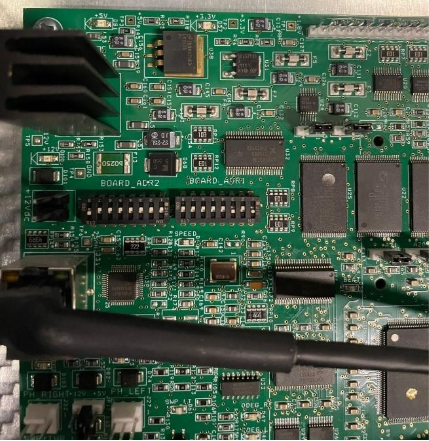

Verify the settings of the dip switches and jumpers on the Distribution Board using the original board and the information provided below.


A picture containing text, electronics, circuit Description automatically generated

Diagram, schematic Description automatically generated

Text Box 9, Textbox

  • Board Address 1 (SW2)

    Identifies the lane pair the Peripheral Controller is installed on.

Lane # SW 1 SW 2 SW 3 SW 4 SW 5 SW 6 SW 7 SW 8
1-2 ON OFF OFF OFF OFF OFF OFF OFF
3-4 ON ON OFF OFF OFF OFF OFF OFF
5-6 ON OFF ON OFF OFF OFF OFF OFF
7-8 ON ON ON OFF OFF OFF OFF OFF
9-10 ON OFF OFF ON OFF OFF OFF OFF
11-12 ON ON OFF ON OFF OFF OFF OFF
13-14 ON OFF ON ON OFF OFF OFF OFF
15-16 ON ON ON ON OFF OFF OFF OFF
17-18 ON OFF OFF OFF ON OFF OFF OFF
19-20 ON ON OFF OFF ON OFF OFF OFF
21-22 ON OFF ON OFF ON OFF OFF OFF
23-24 ON ON ON OFF ON OFF OFF OFF
25-26 ON OFF OFF ON ON OFF OFF OFF
27-28 ON ON OFF ON ON OFF OFF OFF
29-30 ON OFF ON ON ON OFF OFF OFF
31-32 ON ON ON ON ON OFF OFF OFF
33-34 ON OFF OFF OFF OFF ON OFF OFF
35-36 ON ON OFF OFF OFF ON OFF OFF
37-38 ON OFF ON OFF OFF ON OFF OFF
39-40 ON ON ON OFF OFF ON OFF OFF
41-42 ON OFF OFF ON OFF ON OFF OFF
43-44 ON ON OFF ON OFF ON OFF OFF
45-46 ON OFF ON ON OFF ON OFF OFF
47-48 ON ON ON ON OFF ON OFF OFF
49-50 ON OFF OFF OFF ON ON OFF OFF
51-52 ON ON OFF OFF ON ON OFF OFF
53-54 ON OFF ON OFF ON ON OFF OFF
55-56 ON ON ON OFF ON ON OFF OFF
57-58 ON OFF OFF ON ON ON OFF OFF
59-60 ON ON OFF ON ON ON OFF OFF
61-62 ON OFF ON ON ON ON OFF OFF
63-64 ON ON ON ON ON ON OFF OFF
65-66 ON OFF OFF OFF OFF OFF ON OFF
67-68 ON ON OFF OFF OFF OFF ON OFF
69-70 ON OFF ON OFF OFF OFF ON OFF
71-72 ON ON ON OFF OFF OFF ON OFF
73-74 ON OFF OFF ON OFF OFF ON OFF
75-76 ON ON OFF ON OFF OFF ON OFF
77-78 ON OFF ON ON OFF OFF ON OFF
79-80 ON ON ON ON OFF OFF ON OFF

Installing the Replacement Peripheral Controller

  1. Mount the replacement Peripheral Controller, then tighten the screws to secure it to the mounting board.
  2. Feed each cable that was removed in Step 4 of the Preparation section, then connect each cable to the appropriate connection.
  3. Replace the slide cover that was removed in Step 7 of the Preparation section, then secure it with the cover screws.
  4. Reseat each cable that was previously connected to the outside of the original Peripheral Controller.
  5. Connect the power cable, then turn the Peripheral Controller on.

Post-Installation

After replacing the Sync Peripheral Controller, we recommend doing the following additional steps:


  • Verify the Peripheral Controller is Ready

    1. In  Sync Office, run a System Analysis scan.
    2. Once completed, click on Hardware.
    3. Find the replaced Distribution Board / Peripheral Controller in the list of devices; verify a green checkmark is next to it.

  • Testing the Lanes

    Follow the steps below for the lane(s) with the replaced peripheral controller.

    1. In  Sync Desk, issue a Lite League.

    2. Start the game at the lane(s) and verify the pinsetter(s) turn on.

      Throw a ball on each lane and verify the following:

      • The pinsetter cycles/resets correctly.
      • The ball is scored correctly.
      • If installed, the foul units work as expected.
      • If installed, the bumpers work as expected.
